88F6282 microcomputer

Challenge

To design a flexible multifunctional solution that significantly decrease the time for, costs and risks when designing new products.



Solution

We have designed a microcomputer based on Marvell 88F6282 CPU with WiFi and Gigabit Ethernet interfaces. The processors of 88F6282/88F6283 family are made on 55 nm technology, they have well-developed peripherals and low power consumption. Marvell 88F6282 is perfect for wide range of applications such as routers, gateways, network agents, media servers, NAS systems, thin clients, access points, and other network devices. Marvell 88F6283 is an optimized version of 88F6282 with lower power consumption.

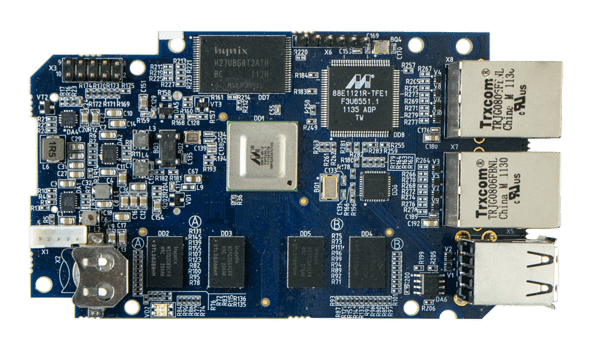

Base PCBA of 88F6282 microcomputer

The block diagram of the 88F6282 microcomputer


Key features of 88F6282 microcomputer

Hardware
CPU
Sheeva architecture , compatible with ARMv5TE
L2-cash 256 KB
Memory
DDR2/DDR3 (1066 МГц data rate)
NAND/SPI Flash
Flash Expansion - SDIO/MMC
Interfaces
Network
2x Gigabit Ethernet
Input/Output Interfaces
2x PCI Express
2x USB 2.0 High-Speed
2x SATA 2.0
2x UART / 2x I2C / SPI
Software
Operation system
OpenWRT, Buildroot, Debian Linux
Possible CPUs
88F6282
1,6 ГГц
1,8 ГГц
2,0 ГГц
High performance
88F6283
800 МГц
1,0 Ггц
Low power consumption
