FPGA  Projects

FPGA, SoC, MPSoC Solutions

We provide FPGA design services using the solutions of world leading FPGA vendors. Here we demonstrate our experience via short case-studies on IntelMicrochipLattice SemiconductorXilinx, and NVidia products.

XILINX

Zynq US+ 1G ethernet

ZynqUS+, Networking, 1G, RPU, Cortex-r5, UDP
An implementation of UDP protocol with hardware Gigabit ethernet controller (GEM). The data can be transmitted both from PL and PS subsystems.
– Hardware UDP offloader
– AXI4-Stream data interfaces
– Control driver for RPU
– Packets routing between PL and PS using IP port

Zynq US+ 1G ethernet

Zynq US+ 10G ethernet

ZynqUS+, Networking, 10G, UDP
A hardware implementation of UDP protocol and 10G MAC.
– Hardware 10G UDP offloader
– AXI4-Stream data interfaces

Zynq US+ 10G ethernet

10G TCP/IP using Linux

ZynqUS+, Linux, 10G, TCP/IP, DDR4
The design solves the problem of reliable data transfer from PL to server. Data transferred directly from PS DDR4 via TCP/IP protocol. The achieved bandwidth is 3.5Gb over a 10G interface.

10G TCP/IP using Linux

JESD204b data transfer to Linux

ZynqUS+, JESD204b, Llinux, ADC, DAС
A design for high-speed ADC and DAC capturing and streaming from/to PS DDR4 memory. The subsystem runs under Linux application control.

JESD204b data transfer to Linux

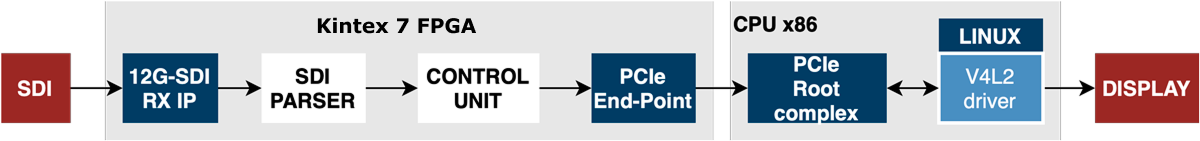

12G-SDI processing

Kintex7, Linux, PCI-E, SDI, Drivers
The design included in the Viewfinder product. Kintex-7 FPGA captures 12G-SDI signal, transmits video data to x86 CPU via PCIe. The Linux receives a video stream using a custom-designed V4L driver and outputs to the display.

12G-SDI processing

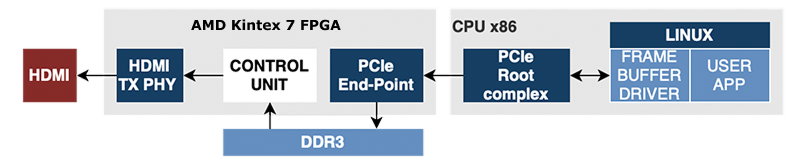

4k HDMI frame buffer

Kintex7, Linux, PCI-E, HDMI, 4K, Drivers
– Linux driver for frame buffer
– Data transfer between x86 CPU and Kintex-7 via PCIe
– DDR3 for image buffering
– Two HDMI output interfaces

4k HDMI frame buffer

Advanced PCIe End-Point IP core

Kintex, Ultrascale, Artix7, Linux, PCI-e, Arria10, CycloneV
A multiplatform PCIe controller core wrapper providing up to 10 DMA channels and 6 BARs.
– Linux driver
– Kintex UltraScale / Artix7
– Arria10 / CycloneV

Advanced PCIe End-Point IP core

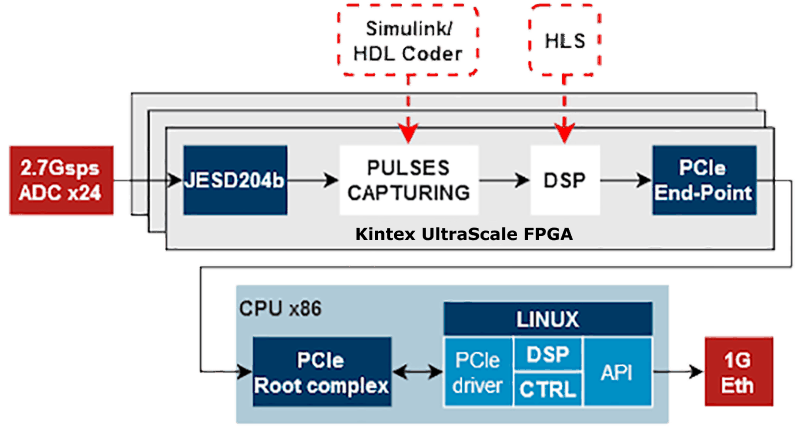

Nano seconds pulses processing

Kintex, Ultrascale+, Linux, MicroTCA, PCI-e, HLS, Simulink, JESD 204b
We designed firmware for the MicroTCA system for the statistical analysis of nanosecond pulses parameters.
– 2.7Gsps ADC x24 channels
– High-level synthesis tools for math
– Data aggregation by Linux

Nano seconds pulses processing

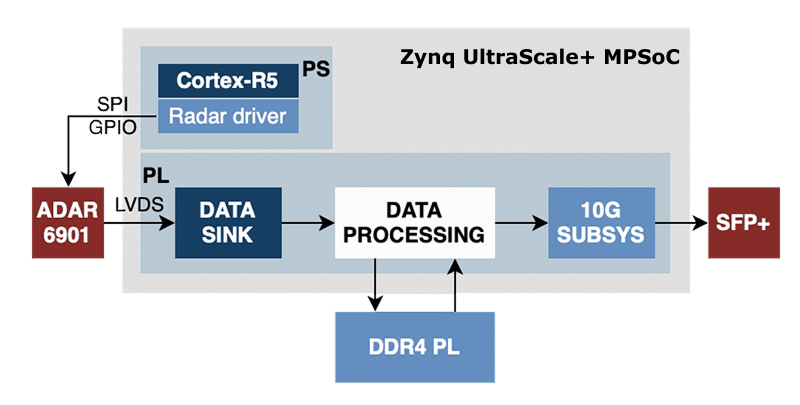

Radar data processing

Zynq Ultrascale+, Cortex-R5, ARM, lvds, 10g
We designed a PCB and firmware for the ADAR6901 radar data processing.
– Zynq UltraScale+
– Cortex-R5 for radar control
– Driver and HAL development
– High-speed LVDS interface
– DDR4 PL for data storage
– 10G interface for processed data downstreaming

Radar data processing

Multirate filter

Xilinx, Simulink, HDLcoder, Artix7

A multirate filter IP core has been generated from the Simulink model using HDL coder toolbox. Signal was buffered in the DDR3 memory for delay implementation.

Multirate filter

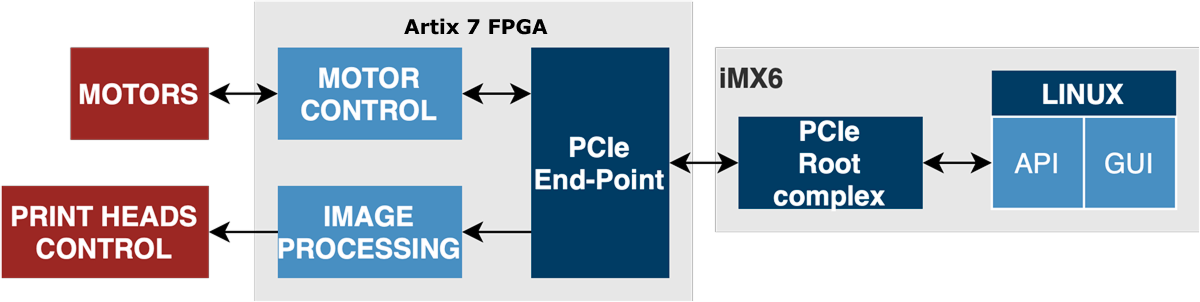

Printer controller

Xilinx, PCIe, Motor, Artix7

Custom solution for industrial printer motor control logic and raster image feeding.

Printer controller

Manufacturing testing equipment

Xilinx, ZynqUS+, MCU, tests

PCB and FW/SW for high-performance ZynqUS+ SoM modules tests at the manufacturing site.

Manufacturing testing equipment

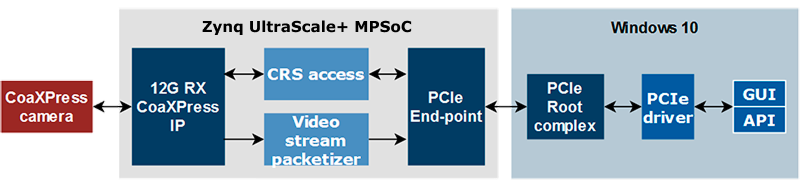

CoaXPress frame grabber firmware

ZynqUS+, CoaXPress

A CoaXPress frame grabber firmware based on PCB hosted Zynq Ultrascale+ MPSoC and Windows 10 machine.

CoaXPress frame grabber firmware

INTEL

Advanced PCIe End-Point IP core

Kintex, Ultrascale, Artix7, Linux, PCI-e, Intel Arria10, CycloneV
A multiplatform PCIe controller core wrapper providing up to 10 DMA channels and 6 BARs.
– Linux driver
– Kintex UltraScale / Artix7
– Arria10 / CycloneV

Advanced PCIe End-Point IP core

3G/12G SDI gearbox

Intel, Cyclone10, SDI
A complete device has been designed for 3G and 12G signal processing. A custom Gearbox IP core for 4x3G<->12G streams conversion has been delivered with 2SI and SQD modes support.

3G/12G SDI gearbox

BIOS emulation

Intel, HyperRAM, niosii, max10, qspi

MAX10+HyperRAM based BIOS emulator for secure Intel chipsets booting.

Polarfire mini-PCIe 3G-SDI card

LATTICE SEMICONDUCTOR

Simple L2 switch IP core

Lattice, Ethernet
A single physical Ethernet port shared between the embedded CPU and MCU SoM. The stream is routed on the base of the device’s MAC addresses.

l2 switch ip core lattice

Video decoding and output to TFT panel

Lattice, H.264, H.265 MIPI, Display

A video TS stream decoded by an iMX8 SoM module. Transmitted to Lattice FPGA using MIPI CSI-2 interface and displayed on the TFT panel.

Video decoding and output to TFT panel lattice

Image processing on ECP5

Lattice, Image Processing, HyperRam, Display

A video stream captured from HDMI interface. Then a chain of image processing operations takes place: white balance and gamma correction, cropping, scaling, and rotation. Finally, video displays on the TFT panel.

Image processing on ECP5

X-Ray imaging system

Lattice, CMOS, Xilinx, 1G

A complete device has been designed for image capturing from 80 X-Ray CMOS sensors. Image captured and pre-processed by Lattice MACHXO3 FPGA, downstream to ARTIX7 motherboard as daisy-chain. FW update and other control operations mediated by external MCU.

X-Ray imaging system

X-Ray sensors module

Lattice, ECP5, CMOS

A small PCB module with 2xCMOS sensors and Lattice ECP5 FPGA for control and image processing.

X-Ray sensors module

MICROCHIP

Polarfire mini-PCIe board

Microchip, Polarfire, Mini PCI-e

We designed a miniPCIe board with a Polarfire MPF300 FPGA. Key features:

  • IO connector with MGTs
  • 4 GB DDR4
  • PCIe x1, Gen 2
Polarfire mini-PCIe board

Polarfire PCIe FMC carrier board

Microchip, Polarfire, FMC, PCI-e

We designed a high-end processing board with a PolarFire MPF500 FPGA. Key features:

  • 8 lanes of PCIe Gen2
  • SPF+ cage
  • FireFly x4
  • Micro USB
  • 16 GB DDR4
  • FMC HPC connector
Polarfire PCIe FMC carrier board

Polarfire mini-PCIe 3G-SDI card

Microchip, Polarfire, Mini PCI-e

We designed a miniPCIe 3G-SDI card with a PolarFire MPF300 FPGA. Key features:

  • 3G-SDI recording and playback
  • 4 GB DDR4
  • PCIe x1, Gen 2
Polarfire mini-PCIe 3G-SDI card

Polarfire SoM module

Microchip, Polarfire, SoM

We've designed a PolarFire MPF300 SoM module.

 polarfire som module

3G-SDI video capturing and playback

Microchip, Polarfire, SDI

FPGA firmware, host PC Linux driver, and API for 3G-SDI video streams capturing/playback.

3g sdi video capturing playback

NVIDIA

3G-SDI stream H.265 compression

Kintex7, Linux, PCI-e Jetson Nano, Drivers, H.265, SDI
The device compresses a 3G-SDI input stream with the H.265 encoder. A V4L2 driver adapts the PCIe data stream to be processed by GStreamer and NVidia HW codec. Linux controls the output bitrate by network throughput estimation (QoS). The PCIe links and delivers a low latency encoding chain.

3G-SDI stream H.265 compression
