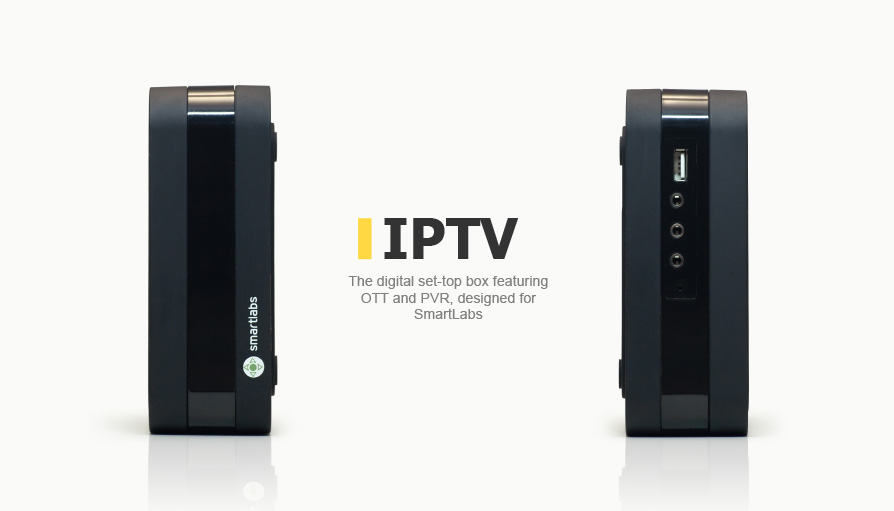

Digital IPTV set-top box featuring OTT and PVR
The development of the hardware platform for IPTV set-top box
Digital IPTV set-top box featuring OTT and PVR
The development of the hardware platform for IPTV set-top box

IPTV set-top box design for SmartLabs

Project overview

Client

SmartLabs is a leading provider of software solutions for interactive TV.

Challenge

Our client decided to implement a vertical business diversification strategy and create his own set-top box so not to depend on equipment manufacturers.

SmartLabs had no experience in hardware design, that is why they chose Promwad as a technology partner with expertise and a trustworthy portfolio with projects for the DTV & broadcasting market.

Solution

We have developed a model range of IPTV set-top boxes, implemented support for MPEG-2/4 and ЗD/НD video, ensured license coverage for all the proprietary coding standards for audio and video.

It was a turnkey project that involved hardware design, development of Linux based software, enclosure and mechanical design, mass production support.

Business Value

As a result, our client has become one of the international leaders in the IPTV solutions market.

In the year of the project completion, SmartLabs won the $50 million contract with the largest telecom operator in Eastern Europe. Their IPTV devices and software solutions were installed for two million subscribers.

The devices designed by our engineers —SML-282 Base and SML-292 Premium — were used as the basis for IPTV services by Eastern European companies and Spanish operator Bona Netto.

Later we designed for SmartLabs a hybrid STB and adapted it to mass production in collaboration with Art. Lebedev Studio.

What our client says

"In just 4 months, a working prototype was ready, and after 10 months we reached production volumes of tens of thousands of units. Today, our IPTV STB is available for sale and competes on an equal footing with Aminet and Motorola."

Igor Rumyantsev, Technical Director at smartlabs logo


Project summary

The digital subscription IPTV STB has been developed on a turn-key basis. Promwad experts have performed the following tasks:

— Hardware development
— Software development and testing
— Enclosure design and structure development
— Prototype manufacturing and debugging

How It's Made

Our design notes

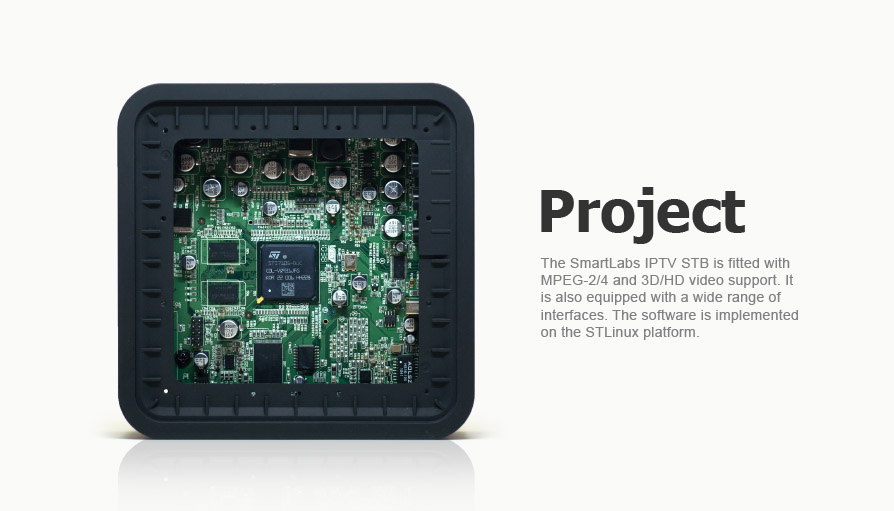

The IPTV STB is equipped with a wide range of interfaces: USB for flash drives, video cameras, Wi-Fi, etc. Operators can implement popular digital TV services including video on demand, network video recorder and TV pause.

IPTV STB datasheet

Hardware
Input signalMPEG-1, MPEG-2MP @ HL, H.264HP @ L4.1
Audio inputMP4 (AAC), PCM Playback, MPEG1 levels I/II, MP3, AAC-LC, AAC+, DTS, Dolby (AC-3 Stereo downmix)
Video resolutionHDTV 1080p60
MicroprocessorSTi7105
MemoryRAM 256 MB, NAND Flash 128 MB
Interfaces
Video outputCVBS 1 x RCA composite, YPbPr 3 x RCA component
Audio output2 x RCA stereo, S/PDIF optic
USB2 x USB 2.0
Ethernet10/100 Mbit Base T
HDMI1.3a with HDCP
Microphone input2 pcs.
IR receiver input1 pc.
Software
Operating systemSTLinux
FirmwareSTAPI
General features
Power12V, 2A
Size150 х 150 х 55 mm
Weight470 g
Operating temperature0 °C … 50 °C
