FPGA & SoC Project Library

Explore selected examples of our FPGA and SoC engineering work. Browse 30+ short case studies by silicon vendor, from 10G networking and JESD204B data capture to SDI video, radar processing and reusable IP cores.

Each entry shows the platform, the interfaces and what the design does. If you see a challenge close to yours, our engineers have already worked through similar architecture decisions — and can bring that experience to your project faster.

AMD

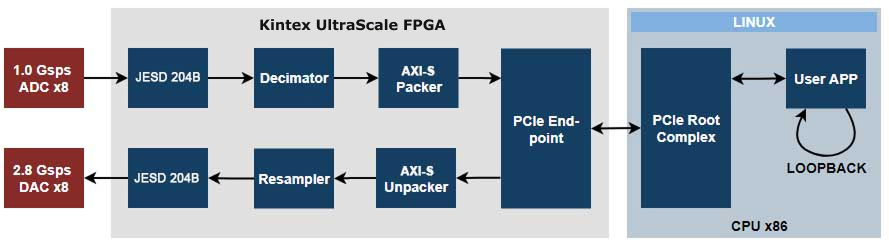

ADC/DAC Repeater

Kintex® UltraScale™, MicroTCA, JESD204B, Linux, PCIe

We designed firmware for a MicroTCA system that buffers ADC data in an x86 CPU system and forwards it to the DAC.

– 1 GSPS ADC, 8 channels
– 2.8 GSPS DAC, 8 channels
– DMA
– PCIe
 ADC/DAC repeater

Analog Frontend Real-Time Controller

Zynq UltraScale+, SDR, AGC, IQ, AFE

We implemented AGC, IQ imbalance compensation, and DC offset removal algorithms on Zynq UltraScale+. The IP cores and software control the ICs on the analog front-end board in real time using the provided parameters. AGC is table-based. IQ and DC correction use a surrogate optimization algorithm over the tunable ADC and mixer parameters.

Analog front-end real-time controller

High-Speed Reliable Data Transfer over 4x10G

Zynq UltraScale+, DPDK, 10G, UDP, DDR4

We implemented a reliable data transfer chain from FPGA to server with an aggregate bandwidth of up to 38 Gbit/s. On the server side, the DPDK framework enables high-rate data reception. A custom protocol with retransmission ensures reliable delivery. Data is buffered in the external DDR4 memory attached to the PL.

High-speed reliable data transfer over 4x10G

Interface Extension FPGA Project

Artix™-7, MCU, ADC, SPI, I2C

– Big-endian and little-endian support for EMIF
– Direct access mode from the MCU to endpoints
– Automatic round-robin polling of endpoints
– Arbiter switch for changing access modes
– ADC controller with daisy-chain support and a configurable internal median filter

Interface extension FPGA

Zynq US+ 1G Ethernet

Zynq UltraScale+, Networking, 1G, RPU, Cortex-R5, UDP

An implementation of the UDP protocol using the hardware Gigabit Ethernet controller (GEM). Data can be transmitted from both the PL and PS subsystems.
– Hardware UDP offload engine
– AXI4-Stream data interfaces
– Control driver for the RPU
– Packet routing between PL and PS by IP port

Zynq US+ 1G ethernet

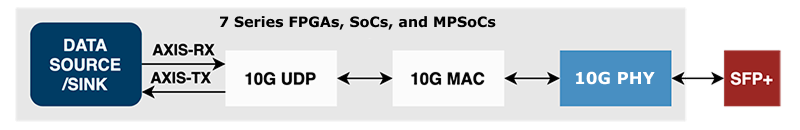

Zynq UltraScale+ 10G Ethernet

Zynq UltraScale+, Networking, 10G, UDP

A hardware implementation of the UDP protocol and a 10G MAC.
– Hardware 10G UDP offload engine
– AXI4-Stream data interfaces

Zynq US+ 10G ethernet

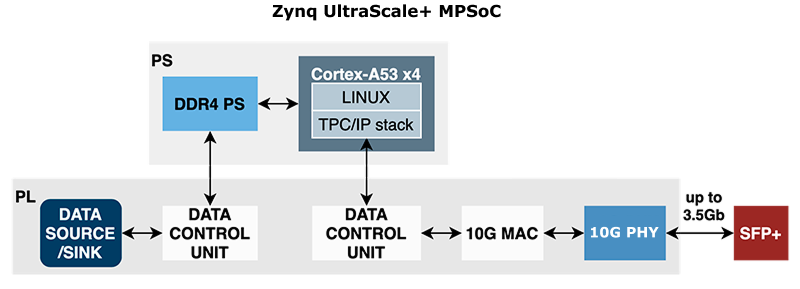

10G TCP/IP Using Linux

Zynq UltraScale+, Linux, 10G, TCP/IP, DDR4

The design provides reliable data transfer from the PL to a server. Data is sent directly from the PS DDR4 over TCP/IP, reaching a bandwidth of 3.5 Gbit/s over a 10G interface.

10G TCP/IP using Linux

JESD204B Data Transfer to Linux

Zynq UltraScale+, JESD204B, Linux, ADC, DAC
A design for capturing and streaming high-speed ADC and DAC data from/to the PS DDR4 memory. The subsystem is controlled by a Linux application.

JESD204b data transfer to Linux

12G-SDI Processing

Kintex-7, Linux, PCIe, SDI, Drivers

This design is part of the Viewfinder product. A Kintex-7 FPGA captures the 12G-SDI signal and transmits the video data to an x86 CPU via PCIe. Linux receives the video stream through a custom V4L driver and outputs it to the display.

12G-SDI processing

4K HDMI Frame Buffer

Kintex-7, Linux, PCIe, HDMI, 4K, Drivers
– Linux driver for frame buffer
– Data transfer between x86 CPU and Kintex-7 via PCIe
– DDR3 for image buffering
– Two HDMI output interfaces

Read the 4K framebuffer case →

4k HDMI frame buffer

Nanosecond Pulse Processing

Kintex-7, UltraScale+, Linux, MicroTCA, PCIe, HLS, Simulink, JESD204B

We designed firmware for a MicroTCA system that performs statistical analysis of nanosecond pulse parameters.
– 2.7 GSPS ADC, 24 channels
– High-level synthesis (HLS) for math functions
– Data aggregation under Linux

Nano seconds pulses processing

Radar Data Processing

Zynq UltraScale+, Cortex-R5, ARM, LVDS, 10G

We designed the PCB and firmware for processing radar data from the ADAR6901.
– Zynq UltraScale+
– Cortex-R5 for radar control
– Driver and HAL development
– High-speed LVDS interface
– DDR4 on the PL for data storage
– 10G interface for streaming processed data downstream

Radar data processing

Multirate Filter

AMD, Simulink, HDL Coder, Artix-7

A multirate filter IP core was generated from a Simulink model using HDL Coder. The signal is buffered in DDR3 memory to implement the delay.

Multirate filter

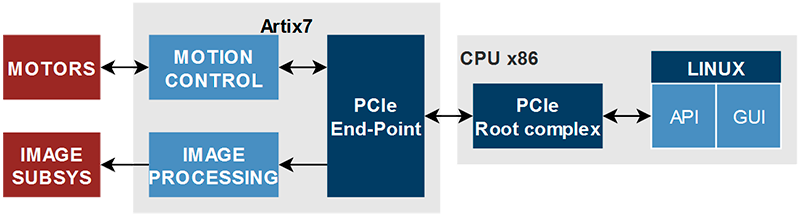

Printer Controller

AMD, PCIe, Motor, Artix-7

A custom solution for industrial printer motor control logic and raster image feeding.

Printer controller

Manufacturing Testing Equipment

AMD, Zynq UltraScale+, MCU, Testing

PCB and FW/SW for testing high-performance Zynq UltraScale+ SoM modules at the manufacturing site.

Manufacturing testing equipment

CoaXPress Frame Grabber Firmware

Zynq UltraScale+, CoaXPress

CoaXPress frame grabber firmware for a Zynq UltraScale+ MPSoC on a custom PCB, working with a Windows 10 host.

CoaXPress frame grabber firmware

RFSoC ADC Data Capture

Zynq UltraScale+ RFSoC, ADC, SATA, SDR, I2C, SPI

We developed an ADC data capture system that captures data from 3 ADC channels, transfers it to the PS, and stores it on a SATA drive. The main challenge was transferring data from the PL to the PS without gaps. In addition to data capture, the Arm software configures the clocking subsystem via I2C/SPI.

Zynq UltraScale+ RFSoC is a single-chip adaptive radio platform.

RFSoC ADC data capture

Multichannel Driver & Monitor Arrays for Programmable Photonics

AMD, Spartan-7, Gowin GW1N, Photonics, PWM, TI DDC1128, FTDI FT601, USB 3.0, Raspberry Pi, Linux, Python, Closed-Loop Control

We developed two FPGA-based units that close the control loop of a programmable photonic integrated circuit. The driver array (MEDA) on an AMD Spartan-7 FPGA generates 128 independent PWM channels to control the electrical drive power applied to the chip.

The monitor array (MEMA) on a Gowin GW1N FPGA reads the chip’s optical power monitors through a 128-channel TI DDC1128 ADC and provides a programmable 0.5–5.0 V supply.

Both units connect to a Raspberry Pi 4 host over USB 3.0. A Python application on Linux compares the measured optical output with the expected one and updates the drive signals in real time.

Block diagram of FPGA-based driver and monitor arrays for a programmable photonic integrated circuit

FPGA Controller for a Nanosecond IR Laser

AMD, Zynq UltraScale+ MPSoC, Analog Devices, JESD204B, DSP, Closed-Loop Control, PROFINET, Hilscher netX 90, Laser Control, Industrial Automation

We developed an electronic controller for a nanosecond IR laser used to cut and drill metal and ceramics. Built on an AMD Zynq UltraScale+ MPSoC with an Analog Devices ADC/DAC front-end, it shapes every pulse in a closed loop: a waveform analyzer feeds correction data to the waveform generator in real time. The controller also manages the Q-switch, power supply, pump, and cooling, and connects to industrial PLCs over PROFINET.

  • ADC/DAC sampling rate up to 3 GSPS
  • Pulse repetition rate up to 100 kHz
  • Pulse width down to 50 ns
  • Closed-loop adaptive pulse shaping
  • Integrated temperature control and HMI
Block diagram of an FPGA-based nanosecond IR laser controller on AMD Zynq UltraScale+

Broadband SDR Satellite Modem Design

AMD, Zynq UltraScale+, SDR, Zero-IF, JESD204B, 4x10G, AGC, IQ Imbalance Compensation, Linux, REST/SNMP API

We designed a hardware and software platform for a satellite modem. This compact, scalable solution is built on a Zynq UltraScale+ platform with a custom front-end that uses high-speed converters and modulators/demodulators.

The final product covers a frequency range of 300 MHz to 2 GHz with bandwidth up to 500 MHz, and features a zero-IF architecture, multiple modulation formats, and error correction coding.

Block diagram of a broadband SDR satellite modem on AMD Zynq UltraScale+

Multi-Beam Satellite Modem on RFSoC

AMD, Zynq UltraScale+ RFSoC, Multi-Beam, Star/Mesh Networks, L2/L3 Routing, PetaLinux, RTOS, DDR4, 1000BASE-X

We designed a next-generation satellite modem that supports various network configurations and advanced features.

The solution offers network flexibility, multi-beam capability, advanced waveforms (DVB-S2X, MF-TDMA), high data rates (40 Mbit/s per connection, 160 Mbit/s per network), and bridge/routing modes.

Block diagram of a multi-beam satellite modem on AMD Zynq UltraScale+ RFSoC

SDR Modem for Satellite Communication

AMD, Zynq UltraScale+ RFSoC DFE, SDR, RF ADC/DAC, Microchip VSC7440, L2/L3 Switching, SGMII, Gigabit Ethernet, 10G, DDR4, Redundant Power Supply

A high-performance software-defined radio (SDR) modem for satellite communication.

The modular design features a customizable analog front-end with LNAs, gain blocks, and filters, and supports up to 8 Gigabit Ethernet ports with optional 10G SFP+ connectivity. Redundant power supplies ensure reliable operation in critical communication applications.

Block diagram of an SDR satellite modem on AMD Zynq UltraScale+ RFSoC DFE
Working on a Zynq, Kintex or RFSoC design? Talk to an engineer who has built one like it.

Altera

Advanced PCIe End-Point IP Core

Kintex UltraScale, Artix-7, Linux, PCIe, Arria 10, Cyclone V
Multi-vendor IP: a multiplatform PCIe controller core wrapper providing up to 10 DMA channels and 6 BARs.
– Linux driver
– Kintex UltraScale / Artix-7
– Arria 10 / Cyclone V

Advanced PCIe End-Point IP core of Intel

3G/12G SDI Gearbox

Cyclone 10 GX, SDI
We designed a complete device for 3G and 12G signal processing, including a custom gearbox IP core for 4x3G ↔ 12G stream conversion with support for 2SI and SQD modes.

Read the 12G-SDI gearbox case →

3G/12G SDI gearbox

BIOS Emulation

Altera, HyperRAM, Nios II, MAX 10, QSPI

A BIOS emulator based on MAX 10 and HyperRAM for secure booting of Altera chipsets.

Intel BIOS emulation

Lattice Semiconductor

Bootloader Development for NX FPGA Family

Lattice, RISC-V, bootloader, FPGA, Certus-NX, CrossLink-NX

We developed a bootloader for the Lattice NX FPGA family with support for external QSPI flash memory. The project included hardware validation on CrossLink-NX and Certus-NX development boards. The SDRAM IP core can be adapted to the NX architecture and used with the synthesizable RISC-V core.
Certus-NX FPGA

Hybrid Video Capturing and Processing Device

Lattice, ECP5, HDMI, MIPI, H.265
Video stream capture, H.265 compression, and streaming to the internet. A Lattice ECP5 handles video preprocessing, while an i.MX8-based SoM handles compression, streaming, and application logic.

Hybrid video capturing and processing device

X-Ray Sensors Module

Lattice, ECP5, CMOS
A compact PCB module with two CMOS sensors and a Lattice ECP5 FPGA for control and image processing.

X-Ray sensors module

Simple L2 Switch IP Core

Lattice, Ethernet
A single physical Ethernet port is shared between the embedded CPU and the MCU SoM. Traffic is routed based on the devices’ MAC addresses.

L2 switch ip core lattice

Video Decoding and Output to TFT Panel

Lattice, H.264, H.265, MIPI, Display

An i.MX8 SoM decodes a video TS stream and transmits it to the Lattice FPGA over MIPI CSI-2 for output to a TFT panel.

Read the video decoding case →

Video decoding and output to TFT panel lattice

Image Processing on ECP5

Lattice, Image Processing, HyperRAM, Display

A video stream is captured from the HDMI interface and passes through a chain of image processing operations: white balance and gamma correction, cropping, scaling, and rotation. The processed video is then displayed on the TFT panel.

Image processing on ECP5

X-Ray Imaging System

Lattice, CMOS, AMD, 1G

We designed a complete device that captures images from 80 X-ray CMOS sensors. A Lattice MachXO3 FPGA captures and preprocesses the images and passes them to an Artix-7 motherboard in a daisy chain. An external MCU handles firmware updates and other control operations.

X-Ray imaging system

Spherical Camera Systems

Lattice, CrossLink-NX, MIPI CSI-2, LVDS, DDR, I2C, SPI, CAN-FD, MCU, Image Processing

We designed a 360° camera monitoring system integrating four PAL/NTSC cameras. Each stream can be scaled, rotated, mirrored, and overlaid with markings.

Users can enable night mode with automatic illumination and adjust video parameters per stream. All configurations are saved for easy recall.

Block diagram of a 4-channel 360° camera system on Lattice CrossLink-NX FPGA
Planning low-power video or control logic on Lattice?

As a Lattice Certified Design Partner and FAE Service Partner, we help you choose the right device and bring it up fast.

Microchip

PolarFire Mini-PCIe Board

Microchip, PolarFire, Mini PCIe

We designed a miniPCIe board with a PolarFire MPF300 FPGA. Key features:

  • IO connector with MGTs
  • 4 GB DDR4
  • PCIe x1, Gen 2
Polarfire mini-PCIe board

PolarFire PCIe FMC Carrier Board

Microchip, PolarFire, FMC, PCIe

We designed a high-end processing board with a PolarFire MPF500 FPGA. Key features:

  • 8 lanes of PCIe Gen2
  • SFP+ cage
  • FireFly x4
  • Micro USB
  • 16 GB DDR4
  • FMC HPC connector
Polarfire PCIe FMC carrier board

PolarFire Mini-PCIe 3G-SDI Card

Microchip, PolarFire, Mini PCIe

We designed a miniPCIe 3G-SDI card with a PolarFire MPF300 FPGA. Key features:

  • 3G-SDI recording and playback
  • 4 GB DDR4
  • PCIe x1, Gen 2
Polarfire mini-PCIe 3G-SDI card

PolarFire SoM Module

Microchip, PolarFire, SoM

We designed a PolarFire MPF300 SoM module.

 polarfire som module

3G-SDI Video Capturing & Playback

Microchip, PolarFire, SDI

FPGA firmware, a host PC Linux driver, and an API for capturing and playing back 3G-SDI video streams.

3g sdi video capturing playback

NVIDIA

3G-SDI Stream H.265 Compression

Kintex-7, Linux, PCIe, Jetson Nano, Drivers, H.265, SDI
The device compresses a 3G-SDI input stream with an H.265 encoder. A V4L2 driver adapts the PCIe data stream for processing by GStreamer and the NVIDIA hardware codec. Linux controls the output bitrate based on estimated network throughput (QoS). The PCIe link enables a low-latency encoding chain.

3G-SDI stream H 265 compression

Don’t See Your Exact Project Here?

Many of our projects are under NDA, so this library shows only part of our FPGA work. Tell us what you are building — an FPGA engineer will point out which proven building blocks we can reuse and where the real risks lie.


Tell us about your project

We’ll review it carefully and get back to you with the best technical approach.

All information you share stays private and secure — NDA available upon request.
