Zynq UltraScale+
Xilinx Ultrascale MPSoC & FPGA Design Services
As an FPGA design firm, we specialise in SoC-based hardware development with unmatched integration opportunities to provide robust performance.
Our partnerships grant us access to top technologies, including Xilinx solutions such as Zynq UltraScale+ MPSoC architecture and Kria SoM portfolio.
About Zynq Ultrascale+
The Zynq UltraScale+ MPSoC family is based on the Xilinx UltraScale+ MPSoC architecture. These products combine a feature-rich 64-bit quad-core or dual-core Arm Cortex-A53, dual-core Arm Cortex-R5-based processing system, and Xilinx programmable logic Zynq UltraScale+ architecture in a single device. These products include on-chip memory, multiport external memory interfaces, and a rich set of peripheral connectivity interfaces.
Target markets: surveillance, computer vision, 5G wireless communications, augmented reality (AR), advanced driver-assistance systems (ADAS), industrial IoT, medical imaging
Our FPGA Design Services
Our Projects
Automated at-factory tests for FPGA-based boards
Tags: Zynq US+, FMC, SATA, DDR, USB
We provided full life cycle support in FPGA-based board design. Our team developed firmware for at-factory automated tests based on UltraScale+ SoC boards. The automated tests cover all external PL and PS interfaces. The tests include DDR memory (PL and PS), FMC high-speed and low-speed lines, SATA, USB, clocking, etc.
Firmware and software development of FPGA-based microscope
Tags: Zynq US+, Linux, Driver, SPI, XY2-100
Development of simple microscope firmware and software including signal generator for driving 2D scanners. Additional requirement was a software update opportunity for our customer's service, which is capable of updating the microscope firmware including the FPGA bit file. Signal generator provides automatic intermediate points generating using a second degree polynomial for analog channels.

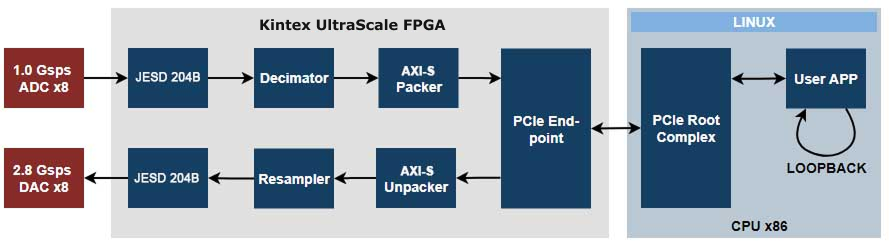

ADC/DAC repeater
Tags: Kintex, Ultrascale, MicroTCA, JESD 204B, Linux, PCIe
We designed firmware for the MicroTCA system for buffering data from ADC in CPU x86 system and translating it to the DAC.– 1 Gsps ADC x8 channels– 2.8 Gsps DAC x8 channels– DMA– PCIe
Analog frontend real-time controller
Tags:Â Zynqus+, SDR, AGC, IQ, AFE
AGC, IQ imbalance compensation, and DC removal algorithms have been implemented in Zynq Ultrascale+. The IP cores and software controls analog frontend board ICs provided parameters in real-time. AGC is table-based. IQ and DC techniques use surrogate optimization algorithm over ADC and mixer tunable parameters.
High-speed reliable data transfer over 4x10G
Tags: Zynqus+, Dpdk, 10G, UDP, DDR4
A reliable data transfer chain from FPGA to a server with overall bandwidth up to 38 Gbps has been implemented. The DPDK framework used a server-side to allow high-rate data reception. A custom protocol with a retransmission feature has been implemented. The data cached in DDR4 PL external memory.

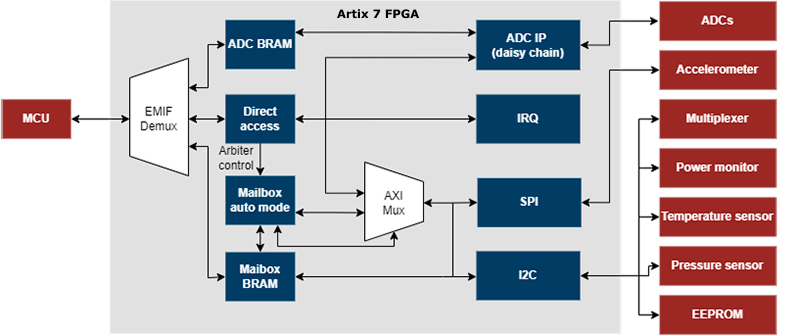

Interface extension FPGA project
Tags: Artix-7, MCU, ADC, SPI, I2C
Interface Extension FPGA project.
- big-endian and little-endian support for EMIF
- direct access mode for MCU to end-points
- auto mode for polling end-points in round-robin
- arbiter switch for changing modes of access
- ADC controller with daisy chain support and internal configurable median filter
Zynq US+ 1G ethernet
An implementation of UDP protocol with hardware Gigabit ethernet controller (GEM). The data transmitted both from PL and PS subsystems.
- Hardware UDP offloader
- AXI4-Stream data interfaces
- Control driver for RPU
- Packets routing between PL and PS using IP port

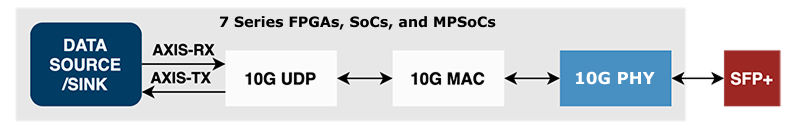

Zynq US+ 10G ethernet
A hardware implementation of UDP protocol and 10G MAC.
- Hardware 10G UDP offloader
- AXI4-Stream data interfaces
JESD204b data transfer to Linux
A design for high-speed ADC and DAC capturing and streaming from/to PS DDR4 memory. The subsystem runs under Linux application control.

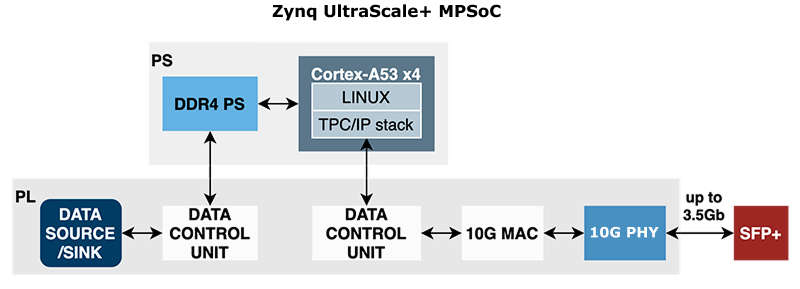

10G TCP/IP using Linux
The design solves the problem of reliable data transfer from PL to server. Data transferred directly from PS DDR4 via TCP/IP protocol. The achieved bandwidth is 3.5Gb over a 10G interface.
Firmware and software development of FPGA-based microscope
Tags: Zynq US+, Linux, Driver, SPI, XY2-100
Development of simple microscope firmware and software including signal generator for driving 2D scanners. Additional requirement was a software update opportunity for our customer's service, which is capable of updating the microscope firmware including the FPGA bit file. Signal generator provides automatic intermediate points generating using a second degree polynomial for analog channels.
ADC/DAC repeater
Tags: Kintex, Ultrascale, MicroTCA, JESD 204B, Linux, PCIe
We designed firmware for the MicroTCA system for buffering data from ADC in CPU x86 system and translating it to the DAC.– 1 Gsps ADC x8 channels– 2.8 Gsps DAC x8 channels– DMA– PCIe
Analog frontend real-time controller
Tags:Â Zynqus+, SDR, AGC, IQ, AFE
AGC, IQ imbalance compensation, and DC removal algorithms have been implemented in Zynq Ultrascale+. The IP cores and software controls analog frontend board ICs provided parameters in real-time. AGC is table-based. IQ and DC techniques use surrogate optimization algorithm over ADC and mixer tunable parameters.
High-speed reliable data transfer over 4x10G
Tags: Zynqus+, Dpdk, 10G, UDP, DDR4
A reliable data transfer chain from FPGA to a server with overall bandwidth up to 38 Gbps has been implemented. The DPDK framework used a server-side to allow high-rate data reception. A custom protocol with a retransmission feature has been implemented. The data cached in DDR4 PL external memory.
Interface extension FPGA project
Tags: Artix-7, MCU, ADC, SPI, I2C
Interface Extension FPGA project.
- big-endian and little-endian support for EMIF
- direct access mode for MCU to end-points
- auto mode for polling end-points in round-robin
- arbiter switch for changing modes of access
- ADC controller with daisy chain support and internal configurable median filter
Zynq US+ 1G ethernet
An implementation of UDP protocol with hardware Gigabit ethernet controller (GEM). The data transmitted both from PL and PS subsystems.
- Hardware UDP offloader
- AXI4-Stream data interfaces
- Control driver for RPU
- Packets routing between PL and PS using IP port
Zynq US+ 10G ethernet
A hardware implementation of UDP protocol and 10G MAC.
- Hardware 10G UDP offloader
- AXI4-Stream data interfaces
JESD204b data transfer to Linux
A design for high-speed ADC and DAC capturing and streaming from/to PS DDR4 memory. The subsystem runs under Linux application control.
10G TCP/IP using Linux
The design solves the problem of reliable data transfer from PL to server. Data transferred directly from PS DDR4 via TCP/IP protocol. The achieved bandwidth is 3.5Gb over a 10G interface.
Automated at-factory tests for FPGA-based boards
Tags: Zynq US+, FMC, SATA, DDR, USB
We provided full life cycle support in FPGA-based board design. Our team developed firmware for at-factory automated tests based on UltraScale+ SoC boards. The automated tests cover all external PL and PS interfaces. The tests include DDR memory (PL and PS), FMC high-speed and low-speed lines, SATA, USB, clocking, etc.
CameraLink video grabber
Tags: CameraLink, Zynq US+, Linux, PCIE driver, video grabber
We developed a video grabber from two CameraLink interfaces with the support of four modes: base (2.04 gbps), medium (4.08 gbps), full (5.44 gbps), and extended (6.8 gbps). We used a double-buffering mechanism in PL DDR memory for robust data transfers. The specific gearbox was developed to pack data from the camera to frames.Â
RFSoC ADC data capture
Tags: Zynq US+ RFSoC, ADC, SATA, SDR, I2C, SPI
We developed an ADC data capture system that captures data from 3 ADC channels, transfers them to the PS, and stores them in a SATA drive. The main problem that was solved was to transfer data without gaps from the PL to the PS side. In addition to data capturing, the ARM's software carries out clocking subsystem configuration via I2C/SPI interfaces.
Zynq UltraScale+ RFSoC is a single-chip adaptable radio platform.
Benefits of Xilinx Zynq Ultrascale+ for FPGA Design
Performance
The solution surpasses Xilinx 700 up to 5X in performance and provides the best performance-per-watt on the market due to heterogeneous workload distribution and memory bandwidth.
Productivity
Xilinx provides a familiar environment for C/C++ developers, OS support, and quick implementation by reference design thereby increasing software and hardware development productivity.
Optimization
Xilinx Zynq Ultrascale+ has innovative ARM + FPGA architecture, extensive OS, middleware, stacks, accelerators, and IP ecosystem. The solution multiples levels of hardware and software security.
Processing System (PS)
Arm Cortex-A53 Based Application Processing Unit (APU)
Quad-core or dual-core
CPU frequency: Up to 1.5GHz
Extendable cache coherency
Armv8-A Architecture
64-bit or 32-bit operating modes
TrustZone security
A64 instruction set in 64-bit mode, A32/T32 instruction set in 32-bit mode
- NEON Advanced SIMD media-processing engine
Single/double precision Floating Point Unit (FPU)
CoreSightTM and Embedded Trace Macrocell (ETM)
Accelerator Coherency Port (ACP)
AXI Coherency Extension (ACE)
Power island gating for each processor core
Timer and Interrupts
- Arm Generic timers support
- Two system level triple-timer counters o One watchdog timer
- One global system timer
- Caches
- 32KB Level 1, 2-way set-associative instruction cache with parity (independent for each CPU)
- 32KB Level 1, 4-way set-associative data cache with ECC (independent for each CPU)
- 1MB 16-way set-associative Level 2 cache with ECC (shared between the CPUs)
Dual-core Arm Cortex-R5 Based Real-Time Processing Unit (RPU)
- CPU frequency: Up to 600MHz • Armv7-R Architecture
- A32/T32 instruction set
- Single/double precision Floating Point Unit (FPU)
- CoreSightTM and Embedded Trace Macrocell (ETM)
- Lock-step or independent operation
- Timer and Interrupts:
- One watchdog timer
- Two triple-timer counters
- Caches and Tightly Coupled Memories (TCMs)
- 32KB Level 1, 4-way set-associative instruction and data cache with ECC (independent for each CPU)
- 128KB TCM with ECC (independent for each CPU) that can be combined to become 256KB in lockstep mode
On-Chip Memory
256KB on-chip RAM (OCM) in PS with ECC
Up to 36Mb on-chip RAM (UltraRAM) with ECC in PL
Up to 35Mb on-chip RAM (block RAM) with ECC in PL
Up to 11Mb on-chip RAM (distributed RAM) in PL
Arm Mali-400 Based GPU
Supports OpenGL ES 1.1 and 2.0
Supports OpenVG 1.1
GPU frequency: Up to 667MHz
Single Geometry Processor, Two Pixel Processors
Pixel Fill Rate: 2 Mpixels/sec/MHz
Triangle Rate: 0.11 Mtriangles/sec/MHz
64KB L2 Cache
Power island gating
Platform Management Unit
Power gates PS peripherals, power islands, and power domains
Clock gates PS peripheral user firmware option
Â
External Memory Interfaces
- Multi-protocol dynamic memory controller
- 32-bit or 64-bit interfaces to DDR4, DDR3, DDR3L, or LPDDR3 memories, and 32-bit interface to LPDDR4 memory
- ECC support in 64-bit and 32-bit modes
- Up to 32GB of address space using single or dual rank of 8-, 16-, or 32-bit-wide memories
- Static memory interfaces
- eMMC4.51 Managed NAND flash support o ONFI3.1 NAND flash with 24-bit ECC
- 1-bit SPI, 2-bit SPI, 4-bit SPI (Quad-SPI), or two Quad-SPI (8-bit) serial NOR flash
8-Channel DMA Controller
Two DMA controllers of 8-channels each
Memory-to-memory, memory-to-peripheral, peripheral-to-memory, and scatter-gather transaction support
Serial Transceivers
- Four dedicated PS-GTR receivers and transmitters supports up to 6.0Gb/s data rates
- Supports SGMII tri-speed Ethernet, PCI Express® Gen2, Serial-ATA (SATA), USB3.0, and DisplayPort
Dedicated I/O Peripherals and Interfaces
- PCI Express — Compliant with PCIe® 2.1 base specification
- Root complex and End Point configurations
- x1, x2, and x4 at Gen1 or Gen2 rates
- SATA Host
- 1.5, 3.0, and 6.0Gb/s data rates as defined by SATA Specification, revision 3.1
- Supports up to two channels
- DisplayPort Controller
- Up to 5.4Gb/s rate
- Up to two TX lanes (no RX support)
- Four 10/100/1000 tri-speed Ethernet MAC peripherals with IEEE Std 802.3 and IEEE Std 1588 revision 2.0 support
- Scatter-gather DMA capability
- Recognition of IEEE Std 1588 rev.2 PTP frames o GMII, RGMII, and SGMII interfaces
- Jumbo frames
- Two USB 3.0/2.0 Device, Host, or OTG peripherals, each supporting up to 12 endpoints
- USB 3.0/2.0 compliant device IP core
- Super-speed, high- speed, full-speed, and low-speed modes
- Intel XHCI- compliant USB host
- Two full CAN 2.0B-compliant CAN bus interfaces o CAN 2.0-A and CAN 2.0-B and ISO 118981-1 standard compliant
- Two SD/SDIO 2.0/eMMC4.51 compliant controllers
- Two full-duplex SPI ports with three peripheral chip selects
- Two high-speed UARTs (up to 1Mb/s)
- Two master and slave I2C interfaces
- Up to 78 flexible multiplexed I/O (MIO) (up to three banks of 26 I/Os) for peripheral pin assignment
- Up to 96 EMIOs (up to three banks of 32 I/Os) connected to the PL
Interconnect
High-bandwidth connectivity within PS and between PS and PL
Arm AMBA® AXI4-based
QoS support for latency and bandwidth control
- Cache Coherent Interconnect (CCI)
System Memory Management
System Memory Management Unit (SMMU)
- Xilinx Memory Protection Unit (XMPU)
Configuration and Security Unit
- Boots PS and configures PL
- Supports secure and non-secure boot modes
System Monitor in PS
- On-chip voltage and temperature sensing
Â
Programmable Logic (PL)
Configurable Logic Blocks (CLB)
Look-up tables (LUT)
Flip-flops
Cascadable adders
36Kb Block RAM
True dual-port
Up to 72 bits wide
Configurable as dual 18Kb
UltraRAM
288Kb dual-port
72 bits wide
Error checking and correction
DSP Blocks
27 x 18 signed multiply
48-bit adder/accumulator
27-bit pre-adder
Programmable I/O Blocks
Supports LVCMOS, LVDS, and SSTL
1.0V to 3.3V I/O
Programmable I/O delay and SerDes
JTAG Boundary-Scan
- IEEE Std 1149.1 Compatible Test Interface
Â
PCI Express
- Supports Root complex and End Point configurations
- Supports up to Gen3 speeds
- Up to five integrated blocks in select devices
100G Ethernet MAC/PCS
- IEEE Std 802.3 compliant
- CAUI-10 (10x 10.3125Gb/s) or CAUI-4 (4x 25.78125Gb/s)
- RSFEC (IEEE Std 802.3bj) in CAUI-4 configuration
- Up to four integrated blocks in select devices
Interlaken
- Interlaken spec 1.2 compliant
- 64/67 encoding
- 12 x 12.5Gb/s or 6 x 25Gb/s
- Up to four integrated blocks in select devices
Video Encoder/Decoder (VCU)
- Available in EV devices
- Accessible from either PS or PL
- Simultaneous encode and decode
- H.264 and H.265 support
System Monitor in PL
On-chip voltage and temperature sensing
10-bit 200KSPS ADC with up to 17 external inputs
Zynq UltraScale+ MPSoCs
| Â | CG Devices | EG Devices | EV Devices |
APU | Dual-core Arm Cortex-A53 | Quad-core Arm Cortex-A53 | Quad-core Arm Cortex-A53 |
RPU | Dual-core Arm Cortex-R5 | Dual-core Arm Cortex-R5 | Dual-core Arm Cortex-R5 |
GPU | – | Mali-400MP2 | Mali-400MP2 |
VCU | – | – | H.264/H.265 |
Â
More information about Xilinx Zynq Ultrascale+
The Zynq UltraScale+ MPSoCs are able to serve a wide range of applications including:
- Automotive: Driver assistance, driver information, and infotainment
- Wireless Communications: Support for multiple spectral bands and smart antennas
- Wired Communications: Multiple wired communications standards and context-aware network services
- Data Centers: Software Defined Networks (SDN), data pre-processing, and analytics
- Smarter Vision: Evolving video-processing algorithms, object detection, and analytics
- Connected Control/M2M: Flexible/adaptable manufacturing, factory throughput, quality, and safety
The UltraScale MPSoC architecture provides processor scalability from 32 to 64 bits with support for virtualization, the combination of soft and hard engines for real-time control, graphics/video processing, waveform and packet processing, next-generation interconnect and memory, advanced power management, and technology enhancements that deliver multi-level security, safety, and reliability. Xilinx offers a large number of soft IP for the Zynq UltraScale+ MPSoC family. Stand-alone and Linux device drivers are available for the peripherals in the PS and the PL. Xilinx’s Vivado® Design Suite, SDKTM, and PetaLinux development environments enable rapid product development for software, hardware, and systems engineers. The Arm-based PS also brings a broad range of third-party tools and IP providers in combination with Xilinx's existing PL ecosystem.
The Zynq UltraScale+ MPSoC family delivers unprecedented processing, I/O, and memory bandwidth in the form of an optimized mix of heterogeneous processing engines embedded in a next-generation, high-performance, on-chip interconnect with appropriate on-chip memory subsystems. The heterogeneous processing and programmable engines, which are optimized for different application tasks, enable the Zynq UltraScale+ MPSoCs to deliver the extensive performance and efficiency required to address next-generation smarter systems while retaining backwards compatibility with the original Zynq-7000 All Programmable SoC family. The UltraScale MPSoC architecture also incorporates multiple levels of security, increased safety, and advanced power management, which are critical requirements of next-generation smarter systems. Xilinx’s embedded UltraFastTM design methodology fully exploits the ASIC-class capabilities afforded by the UltraScale MPSoC architecture while supporting rapid system development.
The inclusion of an application processor enables high-level operating system support, e.g., Linux. Other standard operating systems used with the Cortex-A53 processor are also available for the Zynq UltraScale+ MPSoC family. The PS and the PL are on separate power domains, enabling users to power down the PL for power management if required. The processors in the PS always boot first, allowing a software centric approach for PL configuration. PL configuration is managed by software running on the CPU, so it boots similar to an ASSP.
Our Tech Map in FPGA
Vitis/Vivado, Quartus Prime, Diamond, Libero, Matlab
NVidia Jetson, Alveo, OpenVINO, TensorFlow, Keras, Caffe
Verilog, VHDL, VivadoHLS, Simulink/HDL Coder, С/C++, Python
High-speed PCBs, DDR4, JESD204b, HDMI, SDI, SI, PI, Thermo modeling
Zynq US+, RFSoC, Cyclone10, ECP5, MPF500
AD9361, AD9371, ADRV9009, Radars, Custom AFE, Antenas
DPDK, UDP 10G, TCP 10G, TAPs, L1/L2 IP cores
1G, 10G, 25G/40G, 100G
Our Case Studies
Do you need a quote for your FPGA design project?
Drop us a line about your project! We will contact you today or the next business day. All submitted information will be kept confidential.
