Why Embedded Software Toolchains Break After Board Bring-Up
Production Failure Scenario
The firmware compiled. The board booted. The first peripheral scan passed.
Three weeks later, after the hardware revision changed pin mapping on the CAN transceiver, the vendor BSP patch stopped applying cleanly.
The debug session that had been stable in lab conditions — JTAG, single peripheral, idle state — became unreliable under DMA and networking load.
And every firmware build depended on one engineer’s local machine, where the SDK had been manually patched in a way nobody had documented.
The team did not have a tool problem. It had a toolchain architecture problem.
Quick Overview
Problem:
Common causes:
Where it appears:
Engineering focus:
Embedded Software Development Tools Are Not the Problem. Toolchain Architecture Is.
Most embedded teams do not fail because they picked the wrong IDE, compiler, debugger, SDK, or RTOS. They fail because these tools were validated only during board bring-up — not under product-level integration, CI/CD, hardware revisions, and production-like load.
Why It Fails
BSP fragility is usually the loudest symptom. Vendor BSPs are written against one evaluation board, so any hardware revision — a moved pin, a new peripheral, a tweaked power sequence — needs a patch. Those patches survive a few weeks. They stop surviving the next SDK release if nobody tracked which SDK version they were written against. The structural choice underneath this, between vendor SDK, Yocto, Buildroot, and PetaLinux, is covered in Buildroot vs Yocto for BSP development; that choice sets a ceiling on how stable everything above it can be.
Debug instability shows up next, and it’s quieter. JTAG and SWD behave in single-peripheral idle conditions. Add DMA, interrupt bursts, and a networking stack, and the debug interface starts competing with the SoC for memory bus bandwidth. Trace buffers overflow, single-step behaviour drifts, and the debugger reports a state the processor isn’t actually in. By that point you can’t tell whether you’re chasing a firmware bug or a debug artifact.
Build non-reproducibility is the failure that compounds. If a build depends on a manually patched SDK, undocumented environment variables, or a compiler version installed on one machine, two engineers can build from the same Git commit and get different binaries. Once that’s true, CI/CD becomes unrecoverable without first untangling the dependency.
These don’t sit in isolation. A locally applied BSP patch breaks under the next SDK update. Debug instability hides the regression for two weeks. By the time the bug is reproduced, the only machine that builds the affected version is the one where the patch was originally applied.
Hidden System Complexity
source code → build system → compiler/toolchain → BSP/kernel/RTOS → device drivers → target hardware → JTAG/SWD debug → CI validation → production firmware
A failure that appears as a debug session crash may originate in BSP memory map configuration that conflicts with DMA address assignments — two layers below where the debugger reports the problem.
An RTOS scheduling bug that appears under networking load may be caused by an interrupt priority configuration inherited from the vendor BSP reference that was never validated for the product’s peripheral combination.
Fixing the debugger configuration does not fix the scheduling problem. Fixing the BSP memory map does not fix the build reproducibility. Each layer must be isolated and validated independently. The MCU firmware layer of this stack — RTOS choice, bootloader, driver model, BSP customization — sits in MCU firmware engineering: RTOS and bare-metal; the Linux kernel and Android side sits in Linux and Android kernel engineering. Each layer has its own validation discipline.
This is a toolchain architecture problem. It requires establishing a controlled BSP baseline, a reproducible build system, and a validation path before adding more application logic.
Failure Patterns
Scenario 1: Firmware builds and boots correctly on the evaluation board. After the custom PCB revision changes I2C peripheral addresses and adds a SPI display, the BSP patch for the display driver conflicts with the vendor kernel update shipped three weeks later.
Scenario 2: Debug sessions are stable in idle state with one peripheral. After adding DMA for audio and Ethernet networking, the debug interface begins reporting inconsistent register values under interrupt load — making it impossible to identify whether the problem is firmware or hardware.
Scenario 3: Firmware builds on the lead engineer’s machine pass all tests. A second engineer building from the same Git revision produces a binary that fails the SPI flash initialization because the local SDK version differs by one patch level.
Embedded Software Toolchain Engineering
Embedded software failures during integration often trace back to toolchain decisions made during bring-up — before the full peripheral set, the RTOS, and the CI/CD requirements were understood.
Stabilizing the toolchain after these failures requires structured BSP management, reproducible builds, and a validation path that covers the actual product conditions.
Promwad develops embedded software across firmware, BSP, Linux kernel, device drivers, RTOS, middleware, and validation for products moving from prototype to production.
Engineering Experience Across Embedded and Firmware Development Platforms

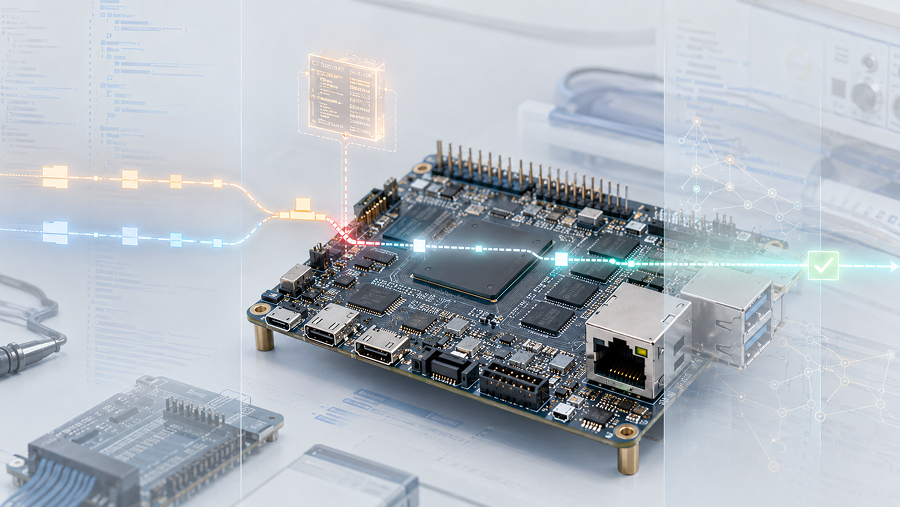

A Connected Embedded Device Where One BSP Patch Cost Four Days of Bisection
A client building a connected embedded device had selected the vendor SDK and BSP during bring-up because it covered the evaluation board and the initial peripheral set. Bring-up went smoothly — boot, peripheral scan, network ping, all clean.
The problem surfaced after the hardware revision added two new peripherals and the team integrated the networking stack. The BSP patch for the new SPI peripheral had been applied locally by one engineer against SDK version 2.3.1. The networking stack required SDK 2.4.0. The patch did not apply, and nobody had documented exactly what it did.
Resolving the conflict took four days of engineering time: bisecting the BSP changes, reapplying the patch against the new SDK version, and validating that the peripheral initialization sequence still worked correctly under DMA load. The fix itself was small. The cost was almost entirely in archaeology.
A tracked BSP baseline in version control, with the patch documented against specific SDK versions, would have reduced this to a two-hour merge.
Solution Approach
Step 1: Document and version-control the current toolchain state.
Record the exact SDK version, compiler version, BSP version, bootloader configuration, and any manual patches applied locally. Store this in the repository alongside the firmware source. If two engineers cannot reproduce the same binary from the same commit, this step is not complete. The OTA delivery and lifecycle side of this is covered separately in firmware update strategies for mission-critical devices — reproducibility is the precondition for safe field updates.
Step 2: Isolate the BSP layer and validate it independently.
Test BSP initialization, peripheral configuration, memory map, and interrupt priorities in isolation — without application code running. This produces a validated BSP baseline. Any subsequent hardware revision or SDK update is applied against this baseline, not against a partially integrated product firmware. The Zephyr-based path for this baseline is described in Zephyr RTOS-based firmware development, which is increasingly the default choice for new MCU-class designs where vendor SDK lock-in is the bigger risk.
Step 3: Validate firmware behavior under production load conditions.
Run the full peripheral set — DMA, networking, display, sensors — simultaneously under the load conditions the product will experience in the field. Validate scheduling jitter, interrupt latency under load, and memory footprint. Firmware that passes this validation under production conditions is firmware that does not fail during integration testing.
A clean checkout of the firmware repository that does not produce the same binary on two machines is the single strongest signal that the toolchain is already part of the product delivery risk. Everything downstream — debug, integration, CI — depends on closing that gap first.
Real Trade-Offs
- Choosing the vendor SDK accelerates bring-up but creates dependency on the vendor release cycle — SDK updates can break BSP patches, and the team must track compatibility across hardware revisions.
- Moving to Yocto or Buildroot gives full control over the software stack and enables reproducible builds, but adds 4–8 weeks of initial setup time and requires ongoing maintenance as upstream components update.
- Adding static analysis to the build catches defects before hardware integration but requires establishing rule sets, suppression lists, and false-positive triage — typically 1–2 weeks of initial configuration.
- Prioritizing fast debug access during bring-up (JTAG, full trace) can create a dependency on specific debug hardware that is not available during production validation — requiring a second debug strategy for system-level testing.
- Integrating RTOS task isolation and watchdog coverage before application logic is complete increases initial development time but eliminates the class of scheduling and memory corruption failures that appear only under full peripheral load. For systems that combine Flutter or AOSP UI layers on top of the BSP, the trade-off space is sharper still — see Flutter and AOSP for industrial embedded HMI.
Typical Embedded Toolchain Engineering Tasks
BSP Baseline and Version Control
Establishing a controlled BSP baseline against specific SDK and kernel versions, with all patches tracked in version control and validated against the hardware configuration.
Reproducible Build System
Setting up Yocto, Buildroot, or CMake-based builds that produce identical binaries from any machine, with dependency versions locked and build environment containerized.
Debug and Trace Configuration
Configuring JTAG, SWD, ETM, and ITM trace under production-representative peripheral load — not just idle state — with documented procedures for crash analysis.
Validation Pipeline
Defining and implementing unit tests, integration tests, and hardware-in-the-loop tests that cover the production peripheral set and RTOS scheduling under load.
Qualifying Symptoms
- Firmware builds succeed on one engineer’s machine but fail or produce different binaries on another machine from the same source commit.
- A BSP patch applied during bring-up breaks after the next SDK version update.
- Debug sessions are stable in single-peripheral idle mode but become unreliable when DMA, networking, or multiple peripherals run concurrently.
- RTOS scheduling failures or interrupt priority conflicts appear only after the full peripheral set is integrated — not during bring-up.
- The CI/CD pipeline cannot be established because the build depends on manually installed SDK components that are not version-controlled.
- A hardware revision changes peripheral configuration, and resolving BSP compatibility takes more than two days of engineering time.
- Production firmware validation is done manually by one engineer on one board — not through an automated test that can be run on every build.
The fix here isn’t a better IDE. The work is toolchain architecture: a versioned BSP baseline, a build that anyone on the team can reproduce, and a validation path that covers the actual peripheral set under load.
In practice: establishing a controlled BSP baseline in version control, setting up a reproducible build system, configuring debug under production load conditions, and defining a validation path that covers the full peripheral set.
A related class of failure sits adjacent to this. If the firmware now needs to talk to an edge AI accelerator, NPU operator coverage and BSP integration become entangled — for the parallel problem on the inference side, see why edge AI accelerators fail without hardware-software co-design. If the firmware needs reliable OTA updates and is heading for production transfer, embedded lifecycle management from provisioning to OTA is the adjacent discipline. And if production-batch firmware behaves differently from prototype firmware despite identical hardware, the problem may be EMS rather than toolchain — the EMS-side failure pattern is described in where turnkey electronics manufacturing fails without DFM.
Embedded software development services are most valuable here not as additional coding capacity, but as a way to stabilize the toolchain before it constrains the product schedule.
This class of problem appears frequently in connected devices, network equipment, industrial controllers, and embedded Linux products where hardware revisions and software releases move in parallel.
Related Engineering Cases
OpenWRT Integration for Multi-Vendor Wi-Fi Cloud Management: Embedded Linux BSP development and firmware integration across 22 routers from multiple vendors — exactly the multi-platform BSP reality this article describes.
Firmware Development for a Connected Bicycle Computer: Full firmware development cycle from BSP to application on custom embedded hardware with BLE, sensors, and OTA.
Secure Mobile Network Router on MediaTek MT7621: OpenWrt-based secure mobile router with VPN, Tor routing, and Linux kernel customization — a real-world reproducible-build case for networking hardware.
FAQ
Why does my firmware build differently on two machines from the same Git commit?
Yocto vs Buildroot vs vendor SDK — when to pick what?
How do you handle BSP patches across SDK updates?
Can JTAG debug interfere with production firmware behavior?
What is the minimum CI/CD setup for embedded development?
Does a stable embedded toolchain mean the device is ready for wireless security testing?
