Xilinx Kria SoM-Based FPGA Design

Promwad, being a trusted member of the Xilinx Partner Ecosystem, is ready to provide our clients with hardware and embedded software design services using Kria portfolio.

The Kria K26 SOM employs the Xilinx Zynq UltraScale+ MPSoC architecture. It has a small form factor which makes it an ideal fit for Smart Surveillance, Smart City, Computer Vision, and Security Applications.

The best way to deploy Xilinx in your projects

Diamond icon

High performance

Xilinx KRIA provides 50% lower latency providing better performance

Compass icon

Acceleration

Pre-built hardware acceleration allows focusing on product improvement and differentiation

Checkmark icon

Adaptivity

Seamless path from idea to future device with fast adaptivity to changing requirements

Kria K26 for Edge Deployment

Xilinx KRIA starter kit

Kria K26

The Kria K26 SOM ships in both commercial and industrial grades and features a custom-built Zynq UltraScale+ MPSoC device in a small form factor card ideal for AI inferencing and production deployment.

Xilinx offers the fully-featured and cost-optimized KV260 Starter Kit designed for Vision AI applications. It provides the fastest way to develop unique solutions for production volume deployment with the K26 SOM.

Our Xilinx Kria projects

Zynq Ultrascale+ 1G ethernet

Zynq US+ 1G ethernet

An implementation of UDP protocol with hardware Gigabit ethernet controller (GEM). The data transmitted both from PL and PS subsystems.

  • Hardware UDP offloader
  • AXI4-Stream data interfaces
  • Control driver for RPU
  • Packets routing between PL and PS using IP port

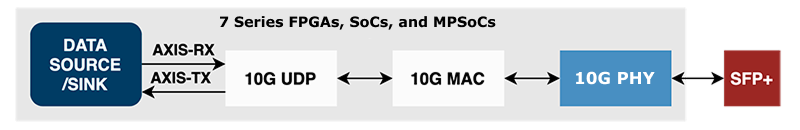

Zynq Ultrascale+ networking 10G ethernet

Zynq US+ 10G ethernet

A hardware implementation of UDP protocol and 10G MAC.

  • Hardware 10G UDP offloader
  • AXI4-Stream data interfaces
JESD204b data transfer from ADC and DAC to Linux

JESD204b data transfer to Linux

A design for high-speed ADC and DAC capturing and streaming from/to PS DDR4 memory. The subsystem runs under Linux application control.

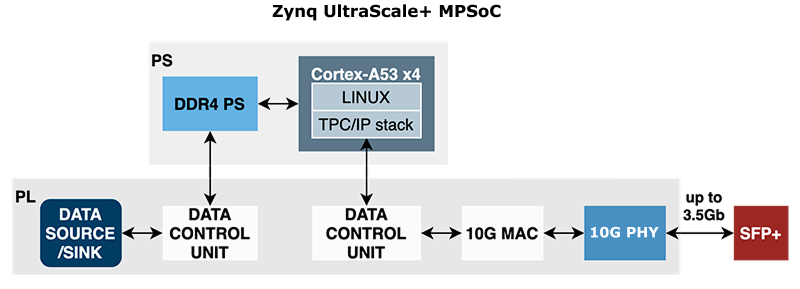

Xilinx 10G TCP/IP using Linux

10G TCP/IP using Linux

The design solves the problem of reliable data transfer from PL to server. Data transferred directly from PS DDR4 via TCP/IP protocol. The achieved bandwidth is 3.5Gb over a 10G interface.

Our tech map in FPGA

Specialized tools

Vitis/Vivado, Quartus Prime, Diamond, Libero, Matlab

Software platforms

NVidia Jetson, Alveo, OpenVINO, TensorFlow, Keras, Caffe

Tools & Languages

Verilog, VHDL, VivadoHLS, Simulink/HDL Coder, С/C++, Python

Hardware design

High-speed PCBs, DDR4, JESD204b, HDMI, SDI, SI, PI, Thermo modeling

Platforms

Zynq US+, RFSoC, Cyclone10, ECP5, MPF500

Transceivers

AD9361, AD9371, ADRV9009, Radars, Custom AFE, Antenas

Network protocols

DPDK, UDP 10G, TCP 10G, TAPs, L1/L2 IP cores

Networking

1G, 10G, 25G/40G, 100G

Alex Krainov, CTO Embedded Development

"Kria is potentially the best solution for seamless video processing, AI and Machine Learning, embedded computing and IIoT systems integration. If you plan projects on Xilinx, we can help you reduce the design cycle with a custom carrier board based on Kria."

— Alex Krainov, CTO of Embedded Engineering at Promwad
