Smart home multimedia controller

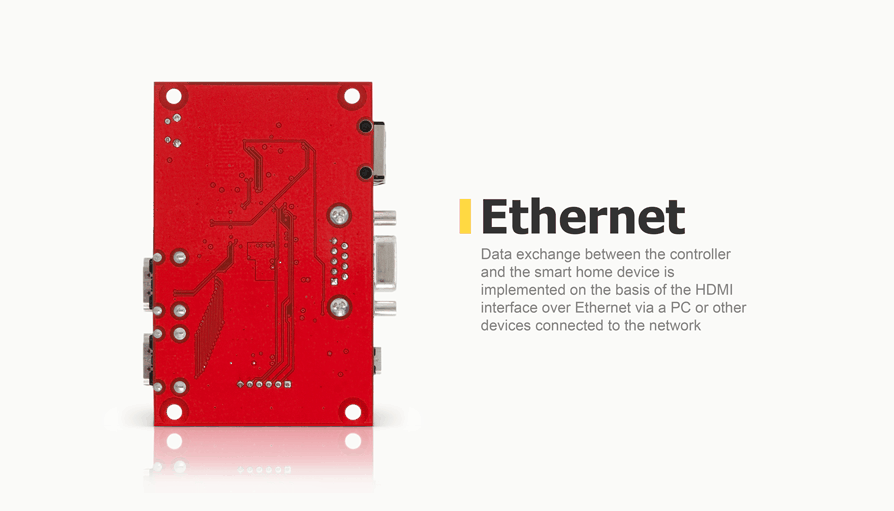

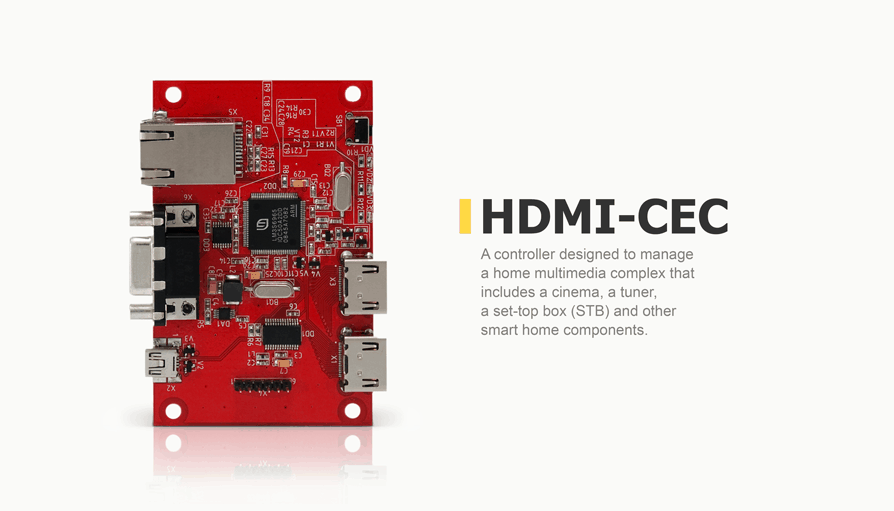

At the order of Incyma, a company based in Switzerland, we have developed a device designed to manage a home multimedia complex which includes a cinema, a tuner, a VCR and other smart home components. Data exchange between the controller and the smart home device is implemented on the basis of the HDMI interface over Ethernet via a PC or other devices connected to the network. The product’s features include quick setup and easy integration into the smart home ecosystem.



Smart Home Ethernet gate datasheet

Hardware
Controller LM3S6965
Interfaces
miniUSB 2xHDMI
HDMI 1
DB9  1
Ethernet 10/100

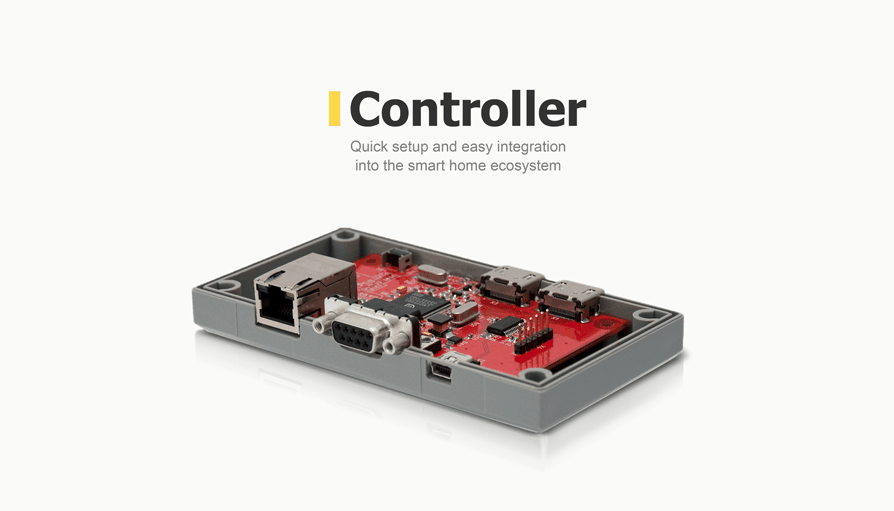

Enclosure
Materials plastic
Manufacturer and model Bopla, EG1230
General features
Size 50 mm х 70 mm х 15 mm
Power 5 V, via miniUSB



Project summary

In the process of developing an Ethernet gate to manage smart home devices, Promwad experts have performed the following tasks:

— Hardware development
— Software development and testing
— Industrial enclosure design
— Prototype manufacturing and debugging
