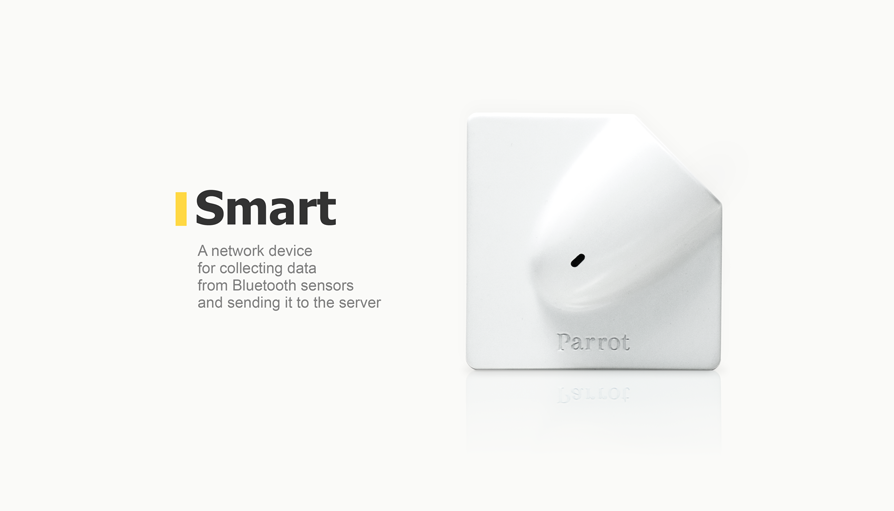

Our company was commissioned by Parrot (Paris) to develop a compact device for collecting data from Bluetooth sensors and transmitting them to the server. This new network device works with multiple Parrot Flower Power mobile gadgets that measure lighting, temperature, humidity, and soil fertility, helping users to create optimal conditions for growth and development of their plants.

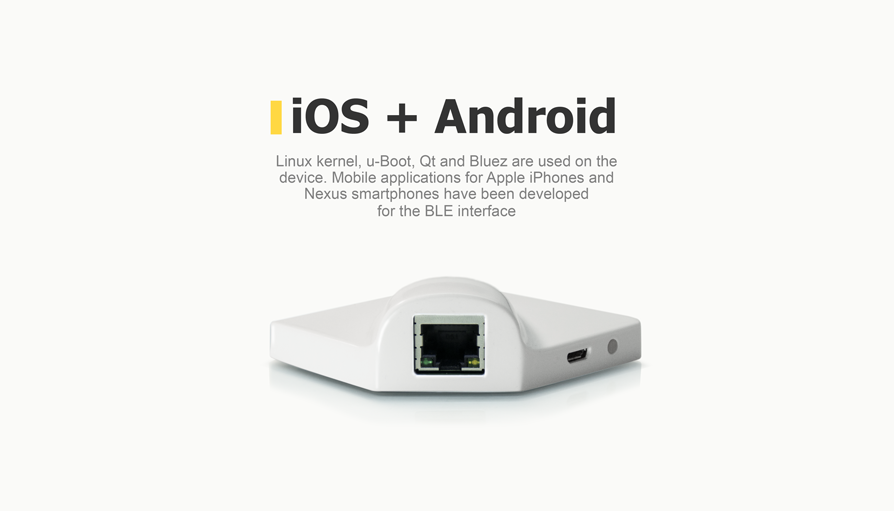

The hardware platform of the device is based on the TI Sitara Cortex-A8 microcontroller and the Wi-Fi / Bluetooth 4.0 module. Software: Linux kernel, u-Boot, Qt and Bluez. Mobile applications for Apple iPhone (iOS) and Nexus (Android) smartphones have been developed to test the use of a BLE interface.

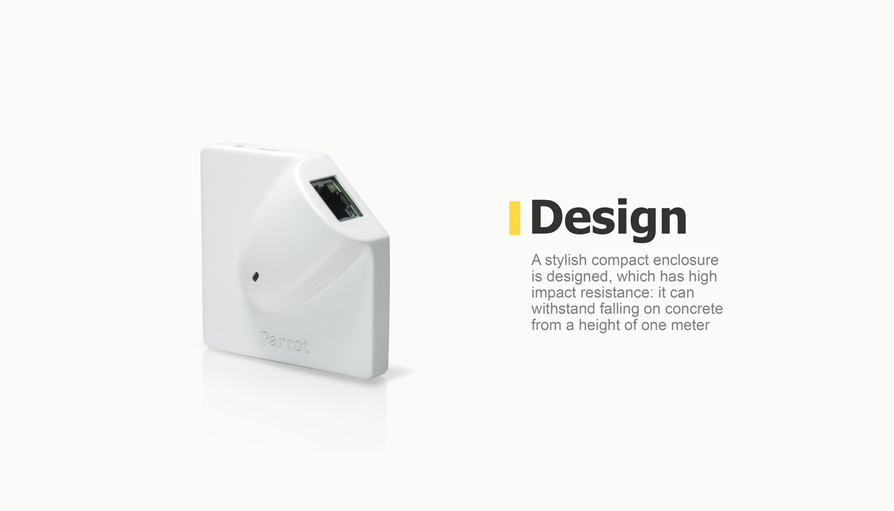

The enclosure designed features a stylish modern design, small size and high durability (it can withstand falling on concrete from a height of one meter).
The device has successfully passed pre-certification testing for impact resistance, air condition (0 ... + 40 ° C), safety in compliance with ETSI EN60950 2001, as well as radiated and conducted interference in compliance with EN 550022.
Bluetooth Smart Gateway features:
- No analogues (it works with Parrot trademark sensors)

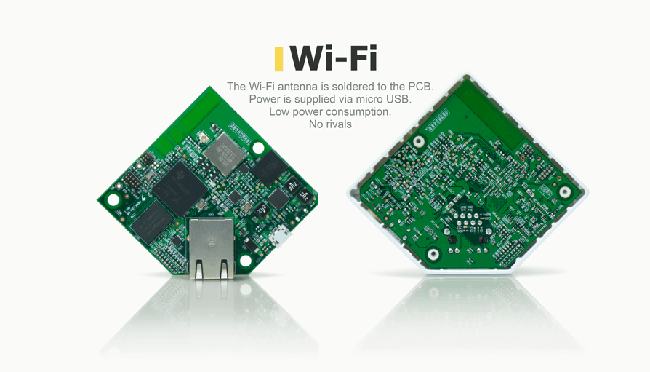

- No external Wi-Fi antenna (PCB-embedded)
- Low power consumption: about 1 watt per hour
- BLE interface support
- Power supply via micro USB
Project outcome
Promwad experts completed the following tasks under the project:
- Hardware platform design
- Software development
- Enclosure construction development
- Manufacturing of prototypes
Customer
Parrot is an international company based in Paris, one of the world leaders in the development and delivery of advanced technology solutions in the field of mobile phones and tablets, automotive electronics, multimedia devices and unmanned aircraft. Listed on NYSE Euronext Paris since 2006. (FR0004038263 - PARRO). More information: www.parrot.com
Objective
The development of a compact network device to collect data from Bluetooth sensors and transfer them to the cloud server.

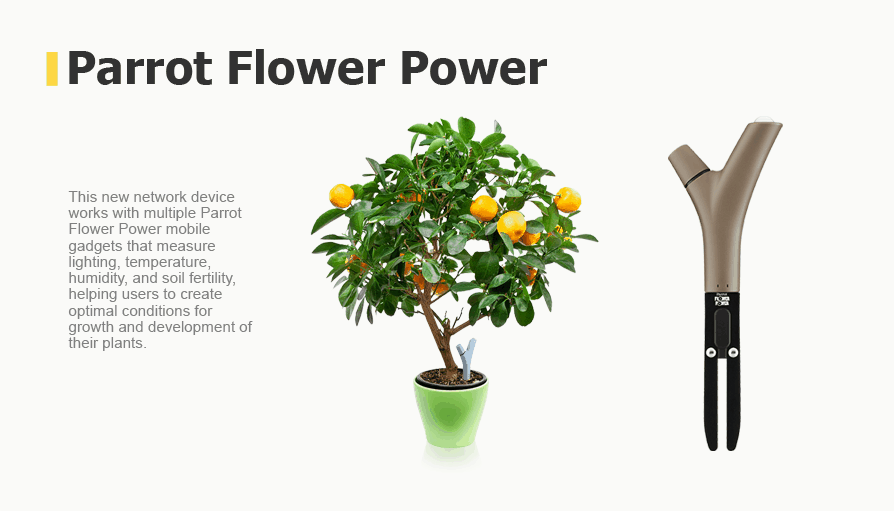

This new device will be used for one of the Parrot’s products—Flower Power—a wireless indoor/outdoor Bluetooth smart plant sensor to measure lighting, temperature, humidity, and soil fertility, helping users to create optimal conditions for growth and development of their plants
Solution
1. Hardware
The main hardware components: Wi-Fi / Bluetooth 4.0 module; TI Sitara Cortex-A8 microcontroller; DDR3 128 MB; NAND Flash 128 MB.

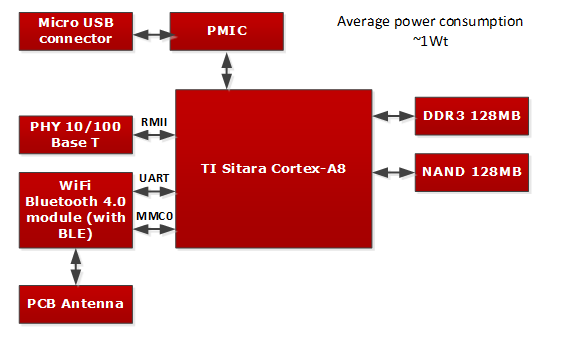

Figure 2. A block diagram of the device Â

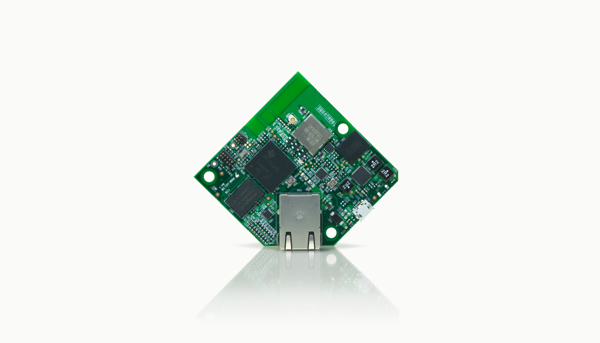

Figure 3. The front side of the printed circuit board
2. Software
The device uses the following software:
- Linux kernel
- u-Boot
- Qt
- Bluez
To test the interaction of mobile platforms with the device through the BLE interface, two mobile applications have been developed
- A mobile application for Apple iPhone operated by iOS7
- A mobile application for Nexus phone operated by Android 4.4
3. Enclosure design
A compact enclosure with a modern design has been developed for the device. The enclosure features:
- A rather thin device
- Shock resistant (it can withstand falling on a concrete floor from a height of 1 m)

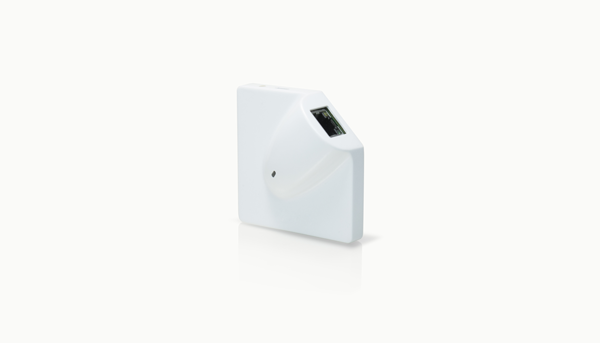

Figure 4. Enclosure: side view
4. Pre-certification testing
After a prototype was developed, the device successfully passed the following tests:
- Impact test (the device was thrown on a concrete floor from a height of 1 meter)
- Environmental testing at a temperature of 0 to 40 degrees Celsius
- Safety testing: the device has been tested for compliance with ETSI EN60950 2001 1.6-1.7, 2.1-2.10, 3.1-3.5, 4.2, 4.3, 4.5, 5.1-5.3
- Radiated emissions testing: compliance with EN 55022 6.2. Testing in the frequency range of 30 MHz to 1 GHz and 1 GHz to 6 GHz with a 1 MHz spacing
- Conducted interference testing in compliance with EN 550022
Advantages
- No rivals: the device is created to collect data from Parrot’s Bluetooth sensors
- Low power consumption: about 1 watt per hour
- Access to the sensors through the BLE interface
- Since there is no external Wi-Fi antenna, this helps save on the cost of electronic components for mass production (the antenna is soldered directly to the PCB)
- Modern and compact design
- Shock resistance (falling on concrete from a height of 1 m)
- Power supply via micro USB connector
